Pulleys

Dailey Engineering offers oil pump pulleys utilizing a taper grip locking mechanism. Our taper lock pulleys eliminate the need for set screws, so the oil pump drive shafts remain undamaged when adjusted or removed. Our pulley hubs are available for 5/8” drive shafts and 1/2” drive shafts with or without drive keys.

HP Series Pulley – 1.15″ wide

We currently carry 8mm HTD tooth sizes from 23T to 46T.

HP Guide Washer Series – .900″ wide

Sizes 25T to 37T, 39T, 40T & 44T available.

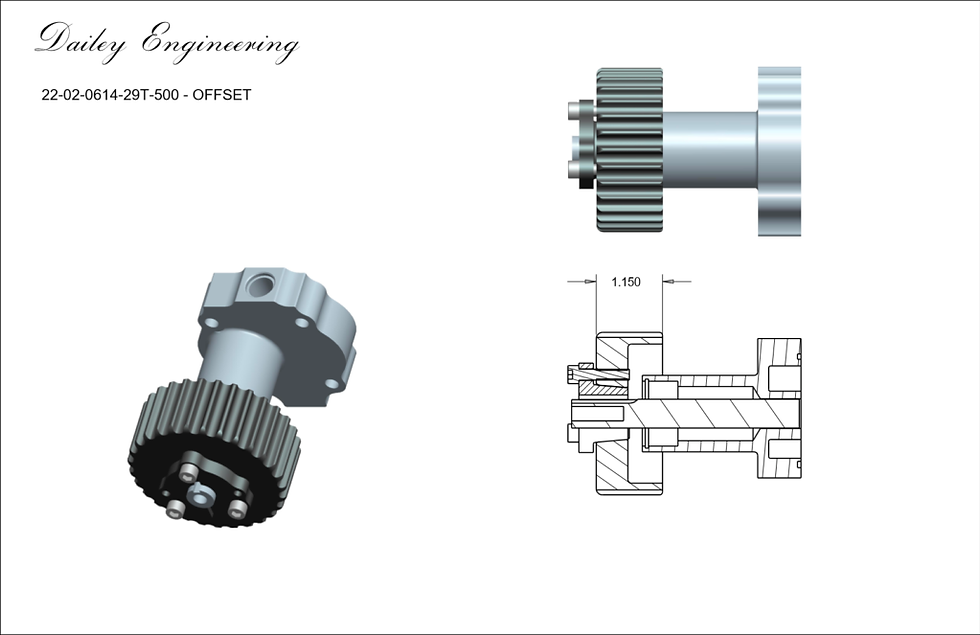

Offset Series – 1.15″ wide

The offset pulley series fills the gaps between the different pump nose length options and gives more flexibility with pump placement.

Sizes 25T to 37T available

 Offset Guide Washer Series – .900″ wide

Sizes 25T to 37T available

We also have selected Twin Pin and 1″ bore crank pulleys, along with a variation of drive mandrels not commonly found by other manufacturers. These are usually custom-made for systems we have designed.
